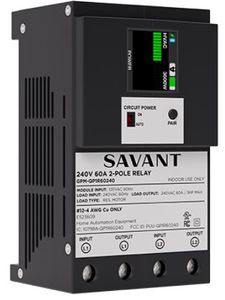

Savant's 60A Power Module (2-Pole, 240V AC with Current Transformer - QO™ compatible with plug-on neutral) controls and monitors a single circuit up to 60 amps; ideal for central heating & cooling equipment, sub-panels, EV chargers, and more.

Savant 60A Power Module

Works with 3/4 inch Schneider/Electric Square D™ QO™ plug-on neutral load centers.

Supported for use with Savant Power Systems or as part of a larger Savant Pro system.

Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)

Deployment and configuration via Savant Power and Light 2.0 App or through RacePoint Blueprint

Control Capability for loads up to 14400 VA (volt-ampere)

Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time

Communicates via Bluetooth Low Energy (BLE) technology

Color LCD display for easy identification and load status

Switch positioned on front of module allows power to output to be toggled on/off manually

General Specs
Product Weight (lbs.)	1
Width (in.)	2.88
Height (in.)	2.6
Length (in.)	5
Outdoor Approved	No
Manufacturer Warranty	5 Year
Color Finish Name	Black
Ul Cul Listed	No
Smart Compatible	No
Wifi Capable	No
Bluetooth Capable	No
App Capable	No
