Crestron® iLux® 0-10V Dimmer Expansion Module

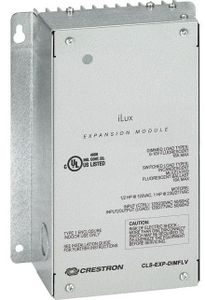

The CLS-EXP-DIMFLV is a 0-10 Volt dimming expansion module for the Crestron iLux® Integrated Lighting System (CLS-C6 Series) and other Crestron® lighting dimmers. It can also be used to switch non-dimmable loads. A single model supports a 120, 230, or 277 Volt load up to 16 Amps.

Any output channel of the iLux system can be used to control the CLS-EXP-DIMFLV. It is also compatible with CLW Series in-wall dimmers and select CLX Series lighting control modules. The metal enclosure is designed to be mounting to a vertical surface, and it can be installed in an environmental air-handling space above a suspended ceiling. Conduit knockouts are provided on the bottom and lower sides of the unit. All connections are made via screw terminals behind the front cover.

Key Features

• Works with Crestron iLux®, CLW, DIN, and CLX Series dimmers
• Emulates the characteristics of the dimmer that is controlling it
• Shares a single iLux dimmer channel with up to 4 more Expansion Modules
• Provides 0-10 Volt dimming control
• Supports 120, 230, or 277 Volt loads up to 16 Amps
• Supports switching of non-dimmable lighting loads and motors
• Includes built-in air gap relay
• Mounts to a wall or above a suspended ceiling
• CEC Title 24 2013 Compliant
