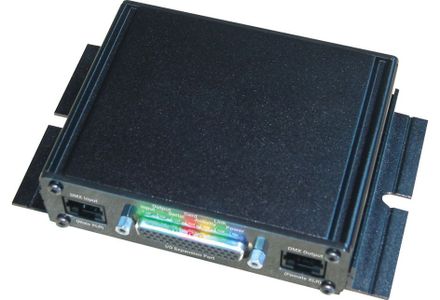

Crestron® DMX-512 Interface

GLA-DMX512 is a complete lighting playback and integration processor, featuring advanced DMX lighting control, sophisticated event scripting and robust I/O capabilities. Great for both architectural and entertainment lighting control projects.GLA-DMX512 is entirely web-based, which means that no special software is needed to operate or program GLA-DMX512. Use a web browser on your computer or PDA to connect to GLA-DMX512 to begin working with it.After GLA-DMX512 is programmed, controller, leveraging its built-in real-time clock/calendar, astronomical time functions, contact closure inputs and wide variety of event triggers to interact with the outside world. Integrate GLA-DMX512 with other external devices via RS-232 serial, Ethernet connectivity and more for fully custom lighting solutions.

Key Features

• Seamlessly handles static scenes, crossfading and real-time "streaming" DMX playback
• Web-based "live" operation and programming
• Powerful CueScript programming language
• Handles up to 4 independent timelines
• Locally program lighting scenes or snapshot from external DMX source
• Network multiple GLA-DMX512 units together to control a large number of channels or devices
• System integration via Ethernet, RS-232 and Digital I/O
• 512 DMX inputs
• 512 DMX outputs
• 2000 cues
• 100 macros
• 500 timecode event triggers
• 256 DMX input triggers
• Large on-board memory and removable memory card slot
• Rugged anodized extruded aluminum housing
• Removable "slide-in" flanges for surface mounting

Specifications
